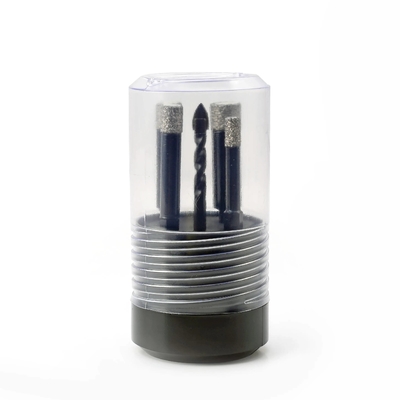

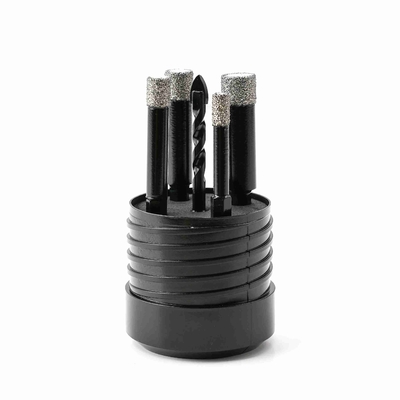

5PCs Porcelain Hole Cutter Tile Hole Saw Bit Hole Saw For Granite Countertop

Brand Name:	OEM/ODM
Price:	Best Factory Price
Payment Terms:	L/C T/T
Supply Ability:	80,000 units per month

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJIANG,CHINA

Certification:

ISO/BSCI

Diamond Height:

5mm, 10mm Or Customized

Shank Type:

M14, M10, Hex Shank, Three-Flats Shank,Double R Grooves Hex Shank

Body Material:

45#steel

Application:

Granite, Marble, Ceramic ,Tile ,Glass ,Stone,Porcelain

Cutting Depth:

30mm

Compatibility:

Suitable For Use With Rotary Drills,angle Grinder

Size:

1/4 Inch (6mm), 5/16 Inch (8mm) 3/8 Inch (10mm), 1/2 Inch (12mm), 1PC 6mm Glass Drill Bit

Surface Finish:

Color Painting

Packaging Details:

Plastic Box,Carton

Supply Ability:

80,000 units per month

Highlight:

5PCs Porcelain Hole Cutter

5PCs Tile Hole Saw Bit

Hole Saw For Granite Countertop

Product Description

5PCs Porcelain Hole Cutter Tile Hole Saw Bit for Granite Countertop

Premium Diamond Hole Saw Set

Professional-grade 5-piece vacuum brazing diamond hole saw kit designed for precision drilling in granite, marble, ceramic tile, glass, and other hard materials. Features integrated wax lubrication for cooler operation and extended bit life.

Key Specifications

Attribute	Value
Diamond Height	5mm, 10mm or Customized
Shank Type	M14, M10, Hex Shank, Three-Flats Shank, Double R Grooves Hex Shank
Body Material	45# Steel
Application	Granite, Marble, Ceramic, Tile, Glass, Stone, Porcelain
Cutting Depth	30mm
Compatibility	Rotary Drills, Angle Grinder
Size	1/4" (6mm), 5/16" (8mm), 3/8" (10mm), 1/2" (12mm) + 1PC 6mm Glass Drill Bit
Surface Finish	Color Painting

Product Features

Vacuum brazing technology for superior diamond particle retention
Integrated wax lubricant melts during dry drilling to cool cutting surface
Multiple shank options for compatibility with various tools
Diamond teeth material provides exceptional durability and cutting performance
45# steel body ensures strength and longevity
Complete set includes four standard sizes plus glass drill bit

Technical Advantages

Our vacuum brazed diamond core bits feature advanced manufacturing techniques that create a stronger bond between the diamond particles and steel body. This results in faster cutting speeds and longer tool life compared to conventional hole saws.

The customizable diamond height (5mm or 10mm) allows for optimal performance based on your specific material requirements. The 30mm cutting depth provides versatility for various installation scenarios.

Recommended Applications

Ideal for professional contractors and DIY enthusiasts working with:

Granite and marble countertop installation
Ceramic and porcelain tile work
Glass and mirror fabrication
Stone masonry projects
Plumbing and electrical installations in hard materials
